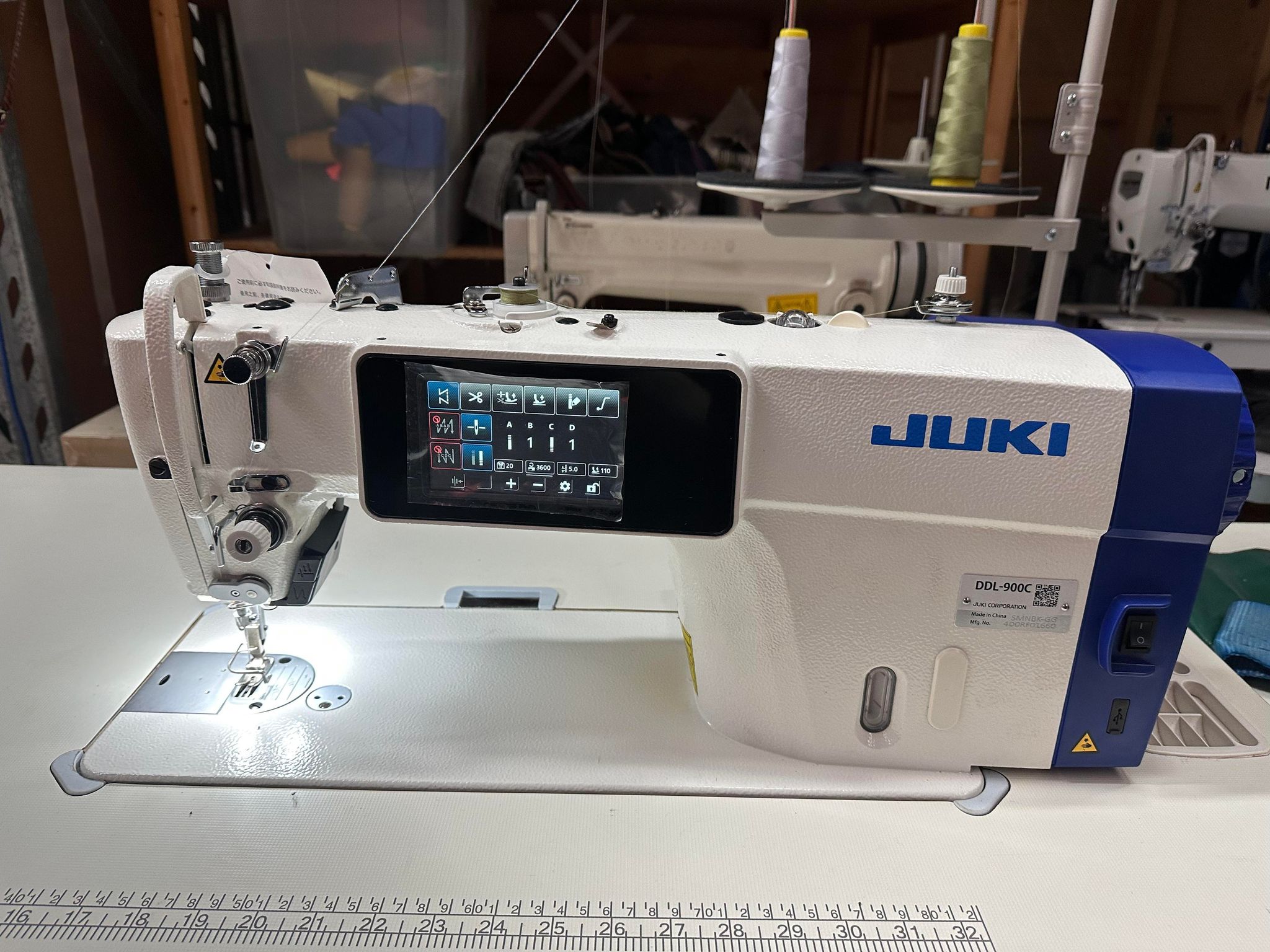

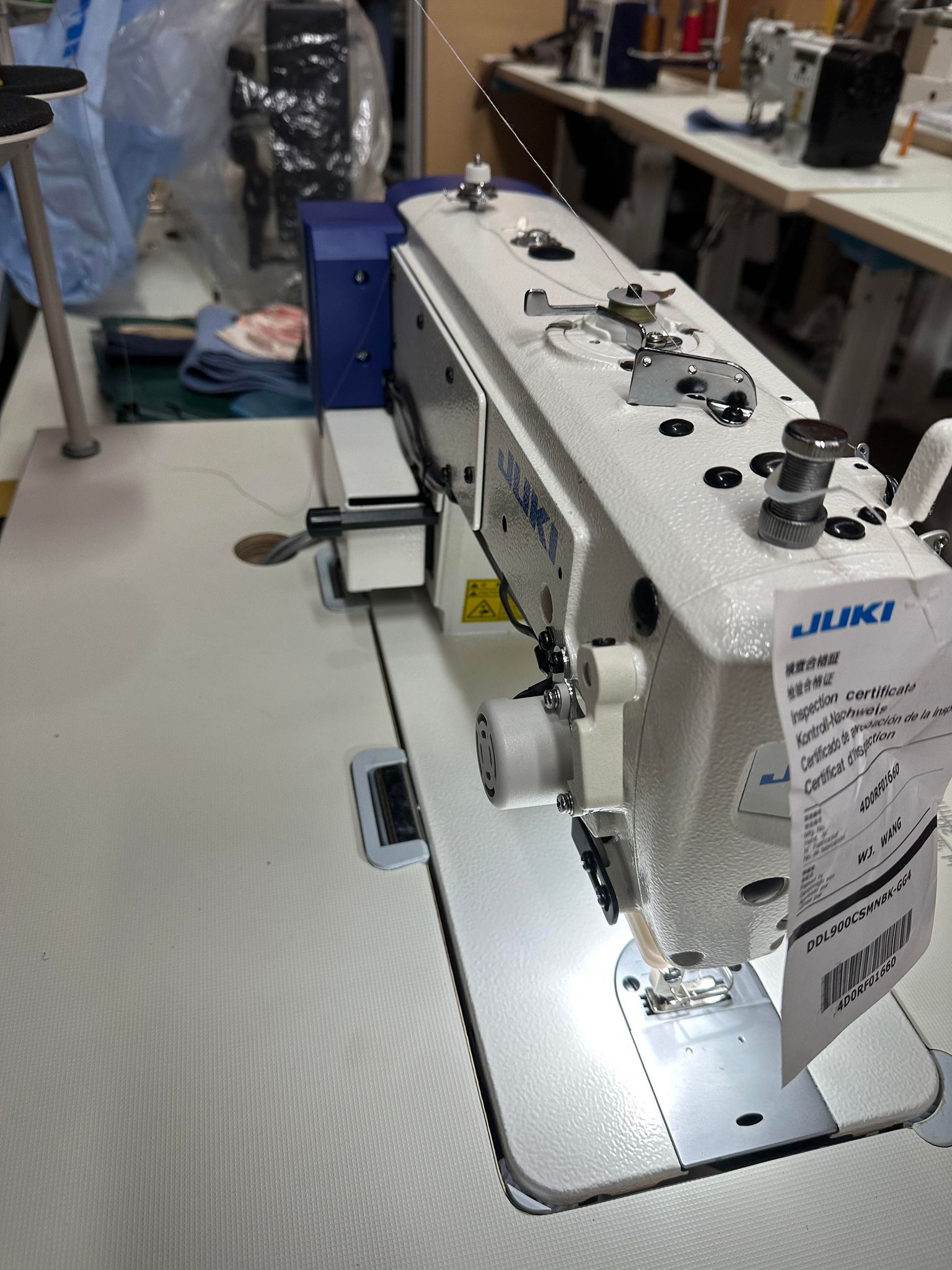

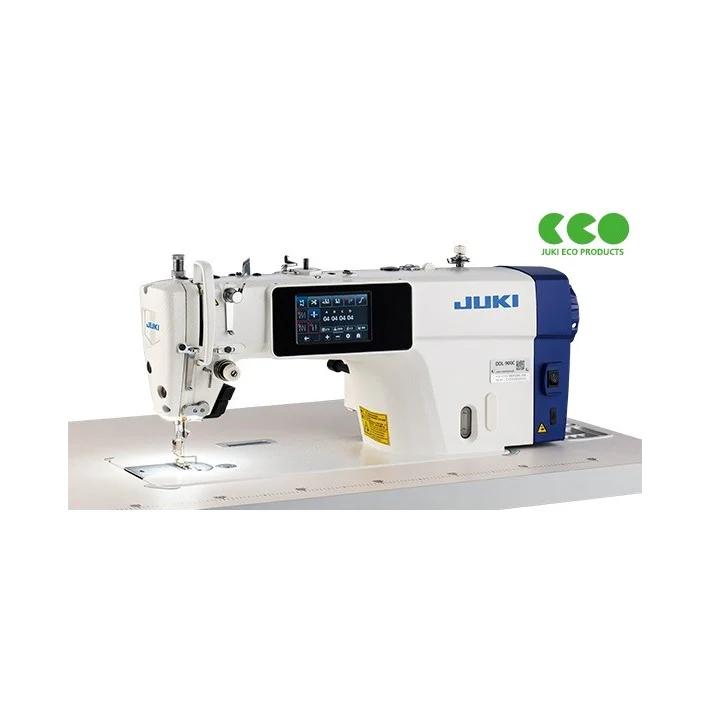

Direct-drive, High-speed, 1-needle, Lockstitch Machine with Automatic Thread Trimmer (Electric Feed Length Control System )

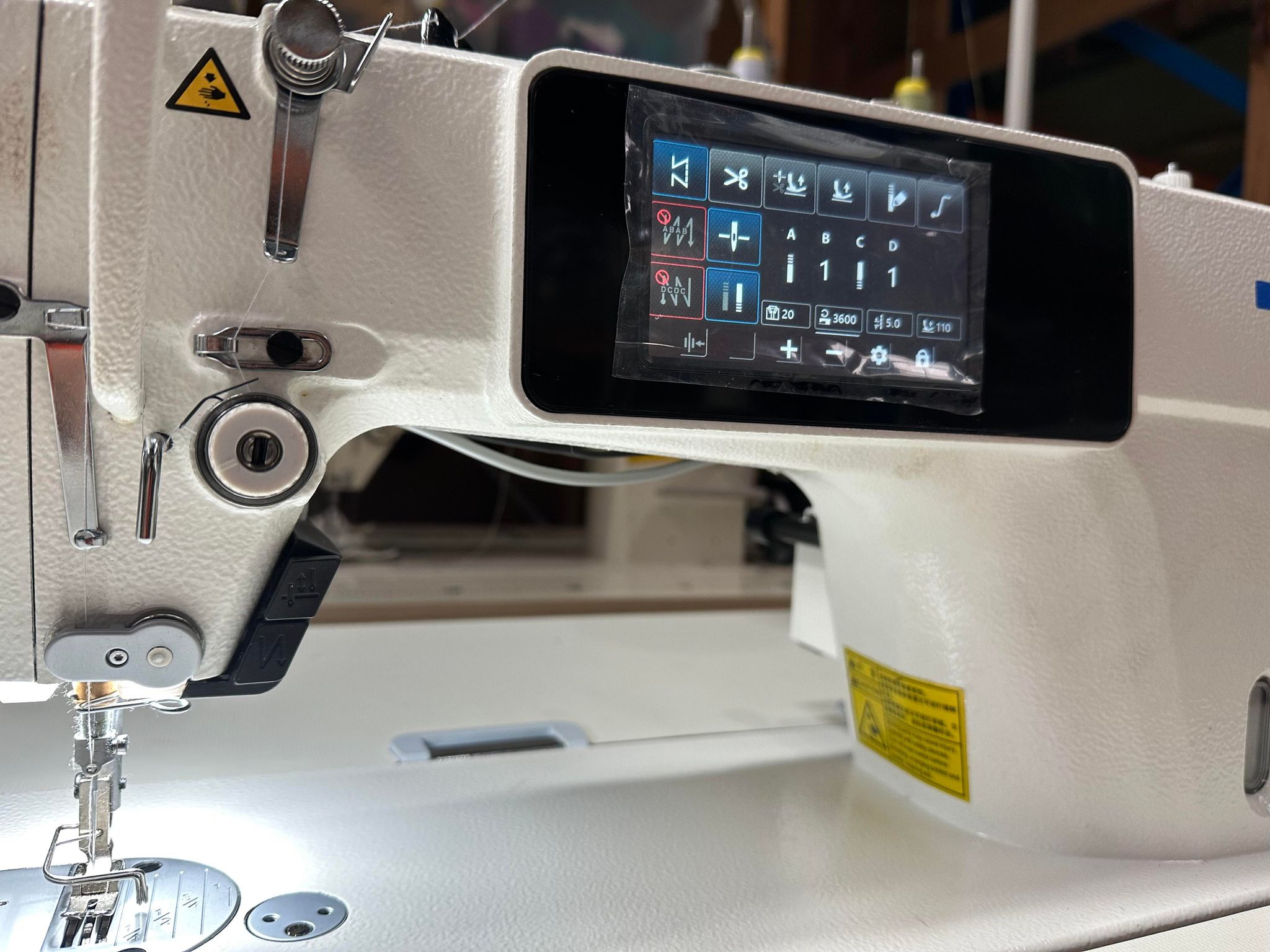

JUKI’s first high-speed lockstitch machine with Electric Feed Length Control System (EFLeCS)The direct-drive motor, control box, and color LCD touch panel of this sewing machine are now combined with the Electric Feed Length Control System (EFLeCS) – all integrated in the main body.

PRODUCT FEATURES (14 MONTHS WARRANTY ON THE POS)
Electric Feed Length Control System (EFLeCS)
Design pattern

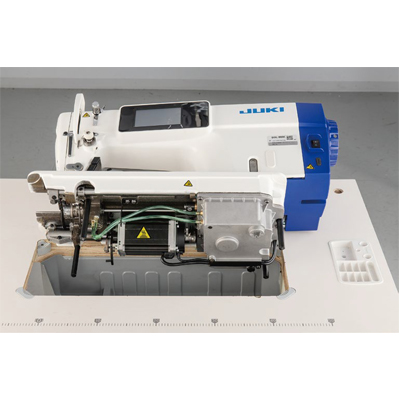

Smart design integrating the control panel with the direct-drive motor and machine head (25% less power)
The length of thread remaining on the material at the end of sewing is 3.5mm

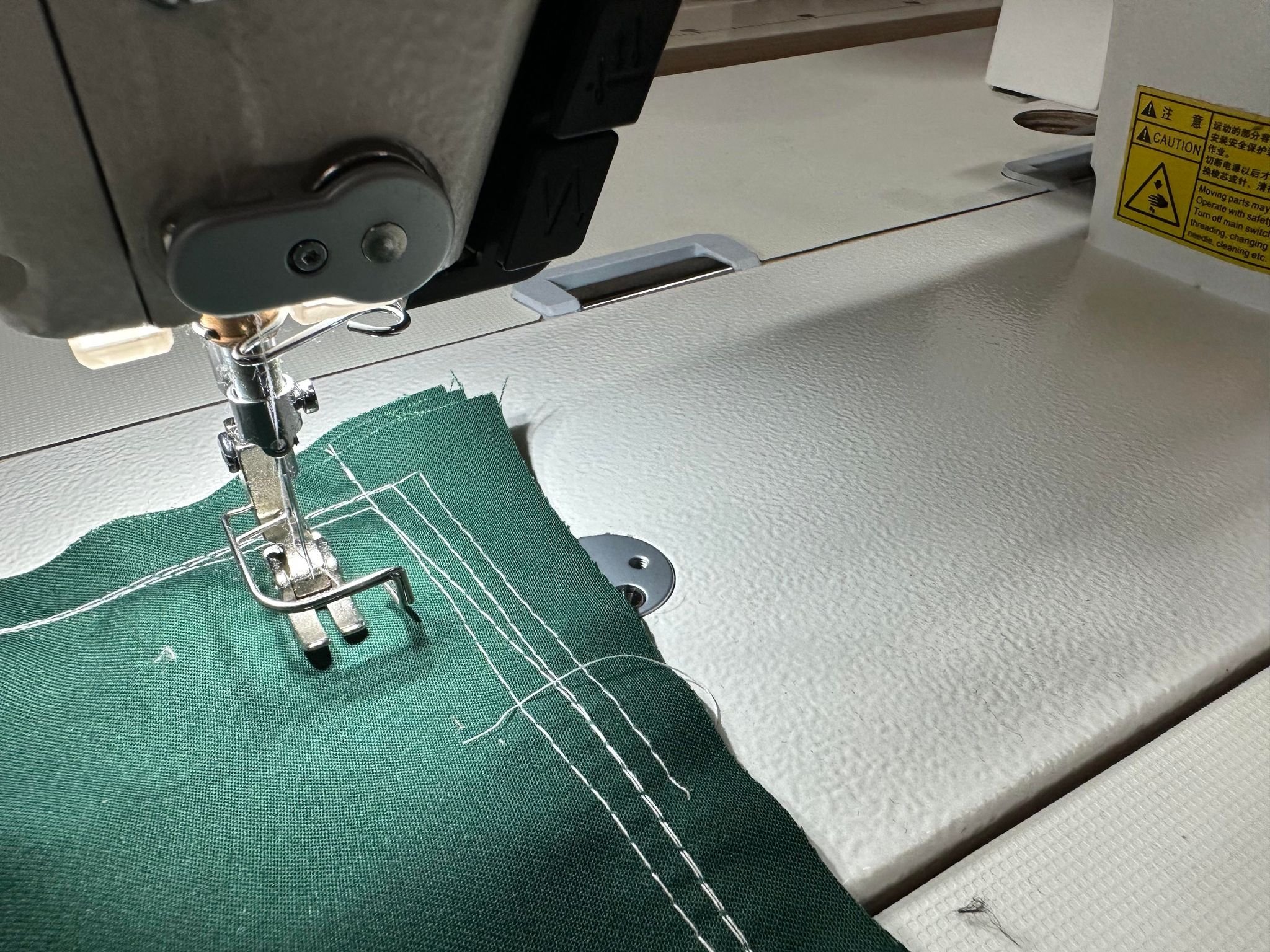

Beautifully finished seams

DEL DDL900CS-M DDL900CS-H
Application Medium-weight Heavy weight
Lubrication Oil Shielding System
Max. sewing speed 5,000sti/min* 4,000sti/min
Max. stitch length 5mm
Needle bar stroke 30.7mm 36mm
Lift of the presser foot Automatic: 9mm / Lever: 13mm
Needle DB×1 #14 DP×5 #21
Lubricating oil JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7)
Power requirement Shingle-phase 220V~240V
Total weight Machine head: 32.2kg
